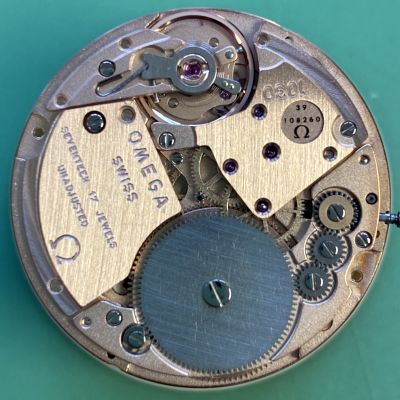

Omega 1030
Manual · 11.5‴ · Switzerland · 1974
Dimensions
25.94 mm
Height
3.70mm
Jewels
17
Power reserve
45h
Timegrapher
Beat rate
28,800bph
Frequency
4Hz
Lift angle
52°
Reference: healthy amplitude ≈ 270–315° fully wound (>200° at 24 h); beat error ideally < 0.5 ms.
Movement
| Movement type |
Manual
Purely mechanical movements wound by hand via the crown, which tensions the mainspring to store energy. As the spring unwinds, it drives the gear train at a controlled rate set by the escapement and balance. Typical power reserves range from 38 to 80 hours, requiring daily or near-daily winding to keep the watch running.
|
|---|---|
| Winding type |
Stem Winding (Crown)
Winding the mainspring by turning the crown attached to the stem, transmitting torque through the winding pinion. Patented by Adrien Philippe in 1842, it replaced key winding and remains the standard manual winding method for both pocket watches and wristwatches.
|
| Setting type |
Stem Set (Crown Pull)
The dominant modern system: pulling the crown out to a setting position engages the hand-setting mechanism. Introduced in the late 19th century and refined into multi-position crowns (date, time, GMT). Used in virtually all modern wristwatches and most 20th-century pocket watches.
|
| Escapement type |
Swiss Lever
The undisputed standard of modern mechanical watchmaking. Through an elegant interplay between escape wheel, pallet fork, and balance, it delivers reliable impulses with the safety of 'draw' to keep the lever locked. Refined since the 18th century, it powers almost every quality mechanical wristwatch made today.
|
| Control type |
Balance Wheel
The heart of mechanical timepieces, the balance wheel is an oscillating component that, together with the hairspring, forms a harmonic oscillator regulating the gear train's pace. Its steady back-and-forth motion ensures the even release of energy from the mainspring, governing the watch's accuracy.
|
| Regulator type |
Pinned Regulator (or Index Regulator)
The most traditional regulator, consisting of a movable index pointer fitted with two curb pins (or a pin and a boot) that embrace the hairspring. Sliding the index along its scale changes the spring's active length, adjusting the rate. Simple, reliable, and easy to service, it remains the workhorse standard across countless mechanical movements.
|
| Shock protection |
Incabloc
The most famous and widely used shock protection system in horology. Invented in 1934 by Georges Braunschweig and Fritz Marti at Universal Escapements (La Chaux-de-Fonds), it employs a lyre-shaped spring holding the jewel setting, allowing it to shift under impact and return to position. Adopted by countless Swiss makers across the 20th century.
|
Specifications
| Lignes | 11.5‴ |
|---|---|
| Shape |
Round
It is the most common form that we can find.
|
| Complications |
Sweep Second
Contrary to the ticking motion of quartz watches, the sweep second hand in mechanical watches moves smoothly around the dial, offering a visual representation of time flowing continuously. This has become synonymous with the precision and craft of mechanical horology.
,
Day
Beyond hours and minutes, the day complication anchors wearers to their weekly schedule, providing context to our cyclical routine.
|
| Hand count | 3 |
| Hand sizes | 1.30 x 0.60 x 0.15mm |
| Further measures | Mounting Diameter (Dm): 27.9mm |
Origin & References
| Manufacturer | Omega |
|---|---|
| Country | Switzerland |
| Launch year | 1974 |
| In-house | No |
| COSC certified | No |
| Signature | 1978: 41491594, Omega, Swiss, 17 Jewels; Incabloc |
Notes
Remarks: 1974-1984, 314000
obvious spin-off of the automatic design:
The empty space for the automatic gear is hidden by a fake bridge. The effort for indirectly driven minute and second is fairly useless.
Other data: mainspring / battery: Omega 1030-1208 balance staff ronda: 5997 (12,5) Mainspring: 0.950 x 11.500 x 0.120 x 480.000 mm
obvious spin-off of the automatic design:
The empty space for the automatic gear is hidden by a fake bridge. The effort for indirectly driven minute and second is fairly useless.
Other data: mainspring / battery: Omega 1030-1208 balance staff ronda: 5997 (12,5) Mainspring: 0.950 x 11.500 x 0.120 x 480.000 mm
Family
Series 1000 - 1035
1000: automatic, 17 jewels, date
1001: automatic, 20 jewels, date, chronometer
1002: automatic, 20 jewels, date
some improved details:
1010: automatic, 17 jewels, date
1011: automatic, 23 jewels, date, chronometer
1012: automatic, 23 jewels, date
1020: automatic, 17 jewels, day, date
1021: automatic, 23 jewels, day, date, chronometer
1022: automatic, 23 jewels, day, date
1030: manual wind, 17 jewels, date
1035: manual wind, 17 jewels
1001: automatic, 20 jewels, date, chronometer
1002: automatic, 20 jewels, date
some improved details:
1010: automatic, 17 jewels, date
1011: automatic, 23 jewels, date, chronometer
1012: automatic, 23 jewels, date
1020: automatic, 17 jewels, day, date
1021: automatic, 23 jewels, day, date, chronometer
1022: automatic, 23 jewels, day, date
1030: manual wind, 17 jewels, date
1035: manual wind, 17 jewels
