ETA 853

Manual · 14‴ · Switzerland · 1941

Dimensions
31.58 mm
Height
Jewels
15
Power reserve
50h
Timegrapher
Beat rate
18,000bph
Frequency
2.5Hz
Lift angle
43°

Reference: healthy amplitude ≈ 270–315° fully wound (>200° at 24 h); beat error ideally < 0.5 ms.

Movement
Movement type Manual
Winding type Stem Winding (Crown)
Setting type Stem Set (Crown Pull)
Escapement type Swiss Lever
Control type Balance Wheel
Regulator type Pinned Regulator (or Index Regulator)
Specifications
Lignes 14‴
Shape Round
Complications Sub Second , Chronograph Minute
Hand count 3
Hand sizes 1.38 x 0.80mm
Further measures
Nominal Diameter (Dn): 31.58mm
Origin & References
Manufacturer ETA
Country Switzerland
Launch year 1941
In-house No
COSC certified No
Signature

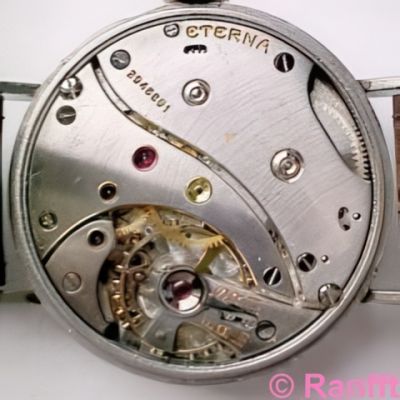

1941: 2948891, Eterna; Eterna-L (Eterna 852)
US import codes
Notes
Remarks: widely equal to Eterna 852
differences not known between 853, 854, 858, 859
Other data: balance staff: U906 stem: W1402 mainspring / battery: Zf1534, 1.80 x 13.5 x 0.17mm balance staff ronda: 838 (14) balance staff ronda: 4534 (14) balance staff ronda: 891 (14) balance staff ronda: 3233 (14) stem ronda: 42 (14)

Compatible Parts

175 other catalog sources can supply compatible parts for this caliber.

43 compatible parts catalogued · find a donor to harvest a scarce part.
