AS 1687
Manual · 11.5‴ · Switzerland · 1960
Dimensions
26 mm
Height
3.60mm
Jewels
17
Power reserve
44h
Timegrapher
Beat rate
21,600bph
Frequency
3Hz
Reference: healthy amplitude ≈ 270–315° fully wound (>200° at 24 h); beat error ideally < 0.5 ms.
Movement
| Movement type |
Manual
Purely mechanical movements wound by hand via the crown, which tensions the mainspring to store energy. As the spring unwinds, it drives the gear train at a controlled rate set by the escapement and balance. Typical power reserves range from 38 to 80 hours, requiring daily or near-daily winding to keep the watch running.
|
|---|---|
| Winding type |
Stem Winding (Crown)
Winding the mainspring by turning the crown attached to the stem, transmitting torque through the winding pinion. Patented by Adrien Philippe in 1842, it replaced key winding and remains the standard manual winding method for both pocket watches and wristwatches.
|
| Setting type |
Stem Set (Crown Pull)
The dominant modern system: pulling the crown out to a setting position engages the hand-setting mechanism. Introduced in the late 19th century and refined into multi-position crowns (date, time, GMT). Used in virtually all modern wristwatches and most 20th-century pocket watches.
|
| Escapement type |
Swiss Lever
The undisputed standard of modern mechanical watchmaking. Through an elegant interplay between escape wheel, pallet fork, and balance, it delivers reliable impulses with the safety of 'draw' to keep the lever locked. Refined since the 18th century, it powers almost every quality mechanical wristwatch made today.
|
| Control type |
Balance Wheel
The heart of mechanical timepieces, the balance wheel is an oscillating component that, together with the hairspring, forms a harmonic oscillator regulating the gear train's pace. Its steady back-and-forth motion ensures the even release of energy from the mainspring, governing the watch's accuracy.
|
| Regulator type |
Pinned Regulator (or Index Regulator)
The most traditional regulator, consisting of a movable index pointer fitted with two curb pins (or a pin and a boot) that embrace the hairspring. Sliding the index along its scale changes the spring's active length, adjusting the rate. Simple, reliable, and easy to service, it remains the workhorse standard across countless mechanical movements.
|
| Shock protection |
Incabloc
The most famous and widely used shock protection system in horology. Invented in 1934 by Georges Braunschweig and Fritz Marti at Universal Escapements (La Chaux-de-Fonds), it employs a lyre-shaped spring holding the jewel setting, allowing it to shift under impact and return to position. Adopted by countless Swiss makers across the 20th century.
|
Specifications
| Lignes | 11.5‴ |
|---|---|
| Shape |
Round
It is the most common form that we can find.
|
| Complications |
Sweep Second
Contrary to the ticking motion of quartz watches, the sweep second hand in mechanical watches moves smoothly around the dial, offering a visual representation of time flowing continuously. This has become synonymous with the precision and craft of mechanical horology.
,
Chronograph Stopwatch
Functionality meets style as this feature allows wearers to measure specific time intervals, embodying the blend of everyday utility with sophisticated design.
|
| Hand count | 3 |
| Hand sizes | 1.50 x 0.90 x 0.21mm |
| Further measures | Mounting Diameter (Dm): 25.6mm Stem height (T): 1.7mm Mounting Height (F): 1.1mm |
Origin & References
| Manufacturer | AS |
|---|---|
| Country | Switzerland |
| Launch year | 1960 |
| In-house | No |
| COSC certified | No |

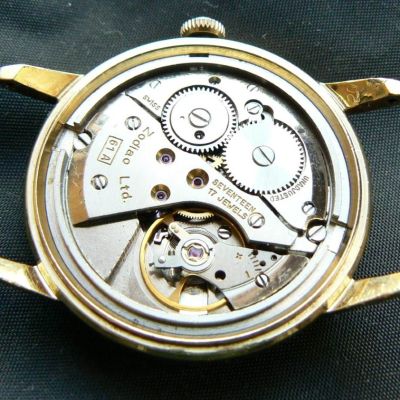

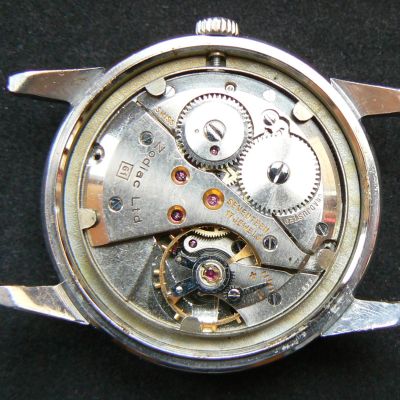

| Signature | ca. 1960: KXF, Zodiac Ltd., Swiss, 17 Jewels; Incabloc
(Zodiac 61) |
Notes
Remarks: AS 1687, 1688 are the base for calibre families from Doxa, Eberhard, Favre-Leuba, Girard-Perregaux, and Zodiac. It is unknown whether they were sold to anybody else. In current calibre registers they scarcely appear as AS calibres.
Other data: balance staff: U2922 / U2839 collet 0.5 / 0.6mm stem: W2837 mainspring / battery: Zf774, 1.25 x 10.0 x 0.11 x 320mm stem ronda: 1318 (11,5) Other data: stem ronda: 1318 (11,5)
Other data: balance staff: U2922 / U2839 collet 0.5 / 0.6mm stem: W2837 mainspring / battery: Zf774, 1.25 x 10.0 x 0.11 x 320mm stem ronda: 1318 (11,5) Other data: stem ronda: 1318 (11,5)
